    Line of Business
    VES
    Product Family
    ALTERNATOR
    Product Name
    ALTERNATORS
    Brands
    Vehicle Type
    PC
    Vehicle Designation
    Ford Focus MKII 1.6 ZETEC engine

    Fitting Instructions Steps Guide (6 steps)

    Complete the steps to fit the part into the vehicle correctly
    01

    Point 1

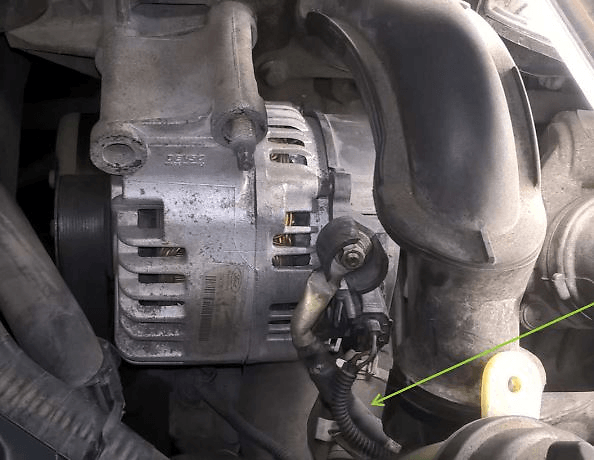

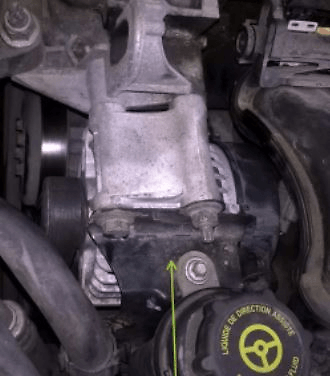

    The OE alternator is attached with steering fluid shield

    The OE alternator is attached with steering fluid shield.

    Point 2

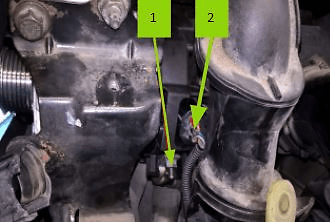

    Connector Pinout B+ Connector Plug

    Connector Pinout: 1. B+ 2. Connector Plug

    02
    03

    Step 1

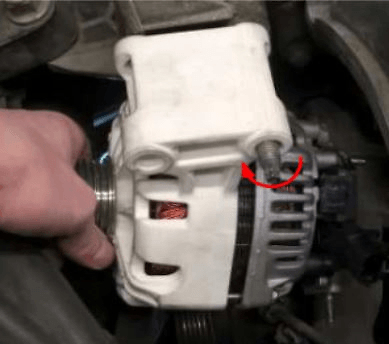

    Operator must rotate alternator around bolt

    Operator must rotate alternator around bolt.

    Step 2

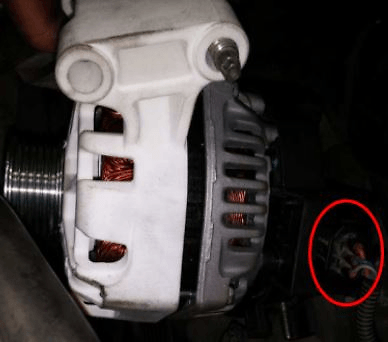

    Connecting wire with their pin.

    Connecting wire with their pin.

    Step 3

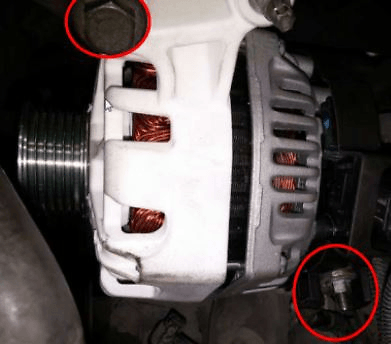

    Alternator should be in normal position – To immobilize use second screw. Connecting B+ wire with their screw-pin

    Alternator should be in normal position – To immobilize use second screw. Connecting B+ wire with their screw-pin.

    04

    Step 4

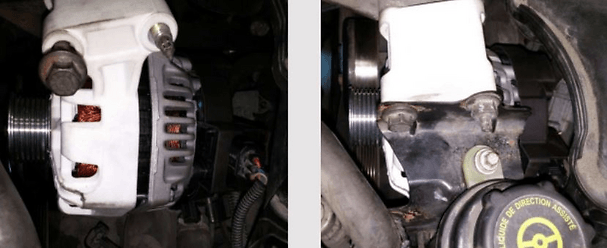

    Mechanic using second screw install alternator in engine chamber.

    Mechanic using second screw install alternator in engine chamber.

    05

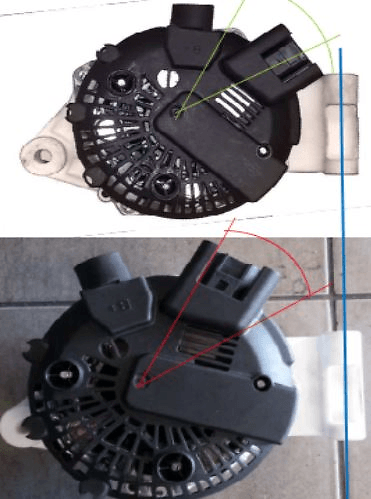

    446521_ Align

    06
    446521_ Align 3
