    Removal & installation of SpyBat

    Removal & installation of SpyBat
    Line of Business
    VES
    Product Family
    ALTERNATOR-STARTER
    Product Name
    ALTERNATOR-STARTER
    Brands
    Vehicle Type
    PC
    Vehicle Designation
    ReStart- IStarts systems

    Fitting Instructions Steps Guide (7 steps)

    Complete the steps to fit the part into the vehicle correctly
    01
    02
    03

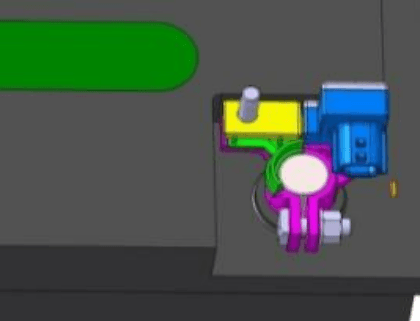

    battery sensor location

    04
    05
    06

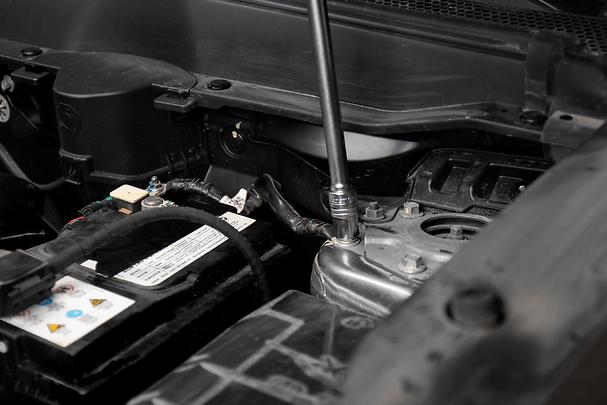

    Turn OFF the ignition switch then disconnect the negative battery cable .

    BMS_Negative_Battery_10202302

    Step 1

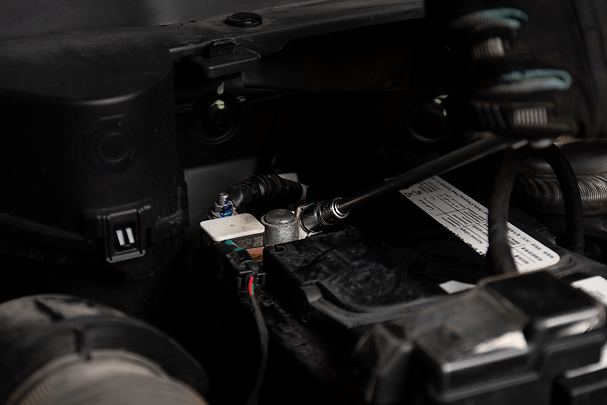

    Disconnect the SpyBat sensor connector.

    BMS_Battery_Sensor_10202304

    Step 2

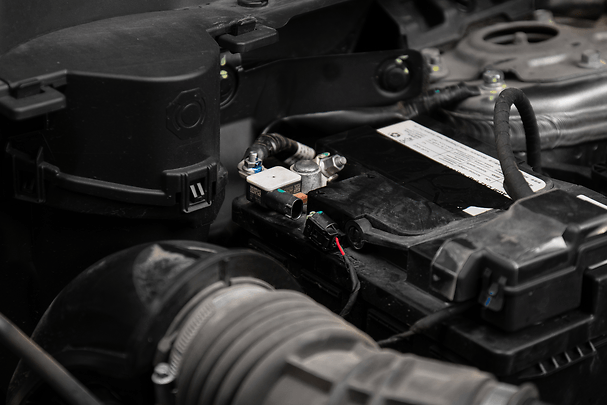

    Remove the ground cable bolt from the chassis ground which attached to the Spybat at point (a)

    BMS_Negative_Cable_10202303

    Step 3

    07
