DWC DC-500 Removal and Installation Steps

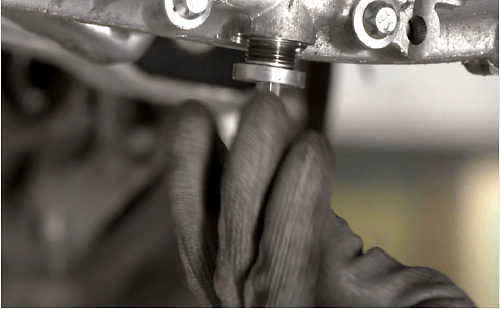

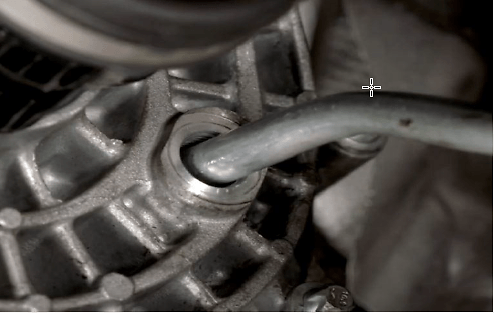

Step 1: Drain the transmission fluid.

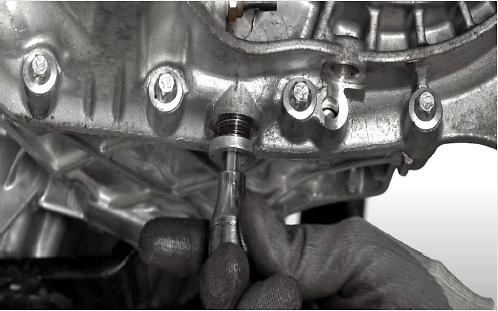

Step 2: Clean and install the oil plug.

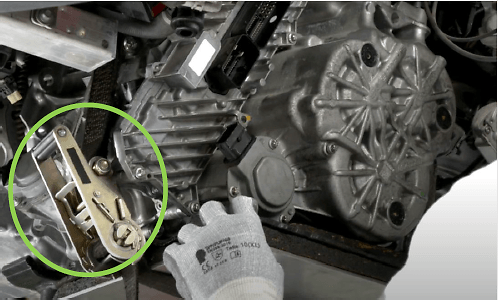

Step 3: To avoid accident, use the correct tool to manage slowly and safely the gearbox from the vehicle.

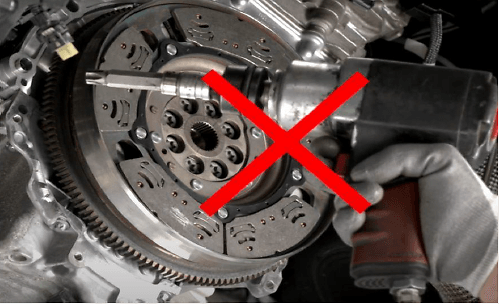

Step 4: Never use impact tool to remove the bolts.

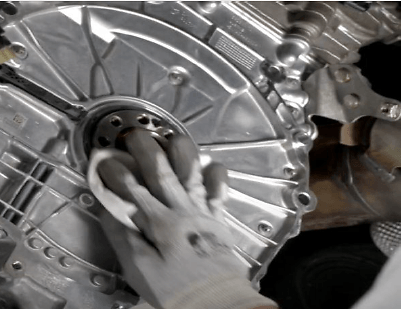

Step 5: After removal the DMF, clean the area and check for any damage in gearbox seal. Replace if it's needed.

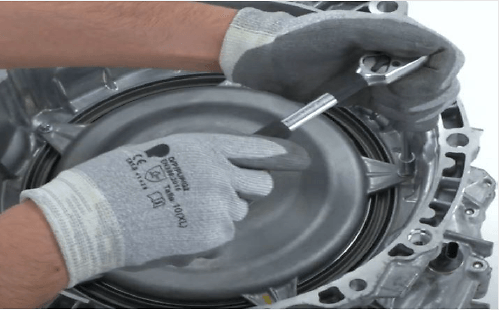

Step 6: Remove the cover by using hand tool.

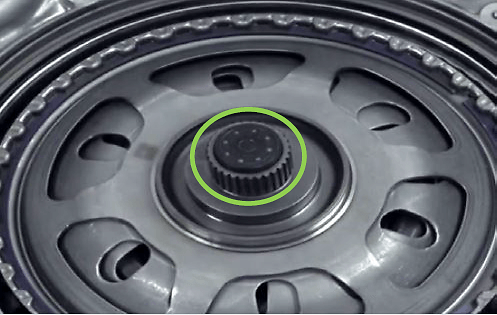

Step 7: Remove the rubber cap

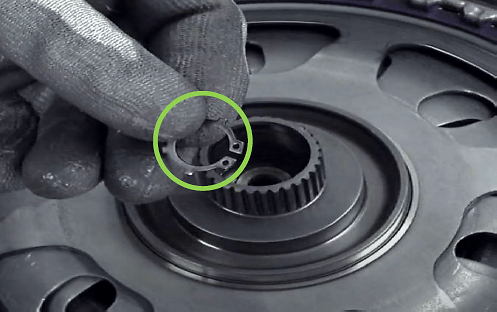

Step 8 Remove the snap ring from the primary shaft.

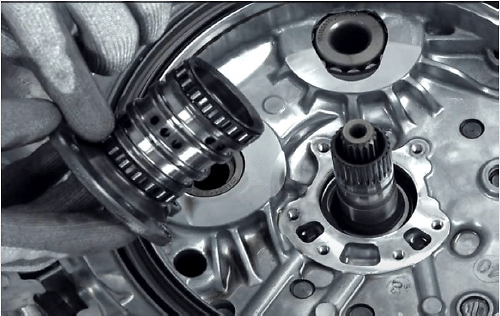

Step 9: Remove the kit as one unit from the gearbox.

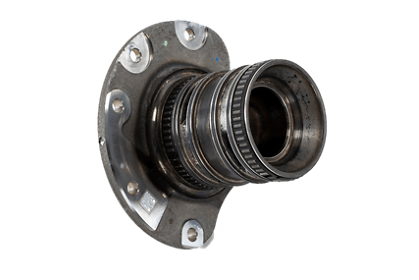

Step 10: Remove the clutch support.

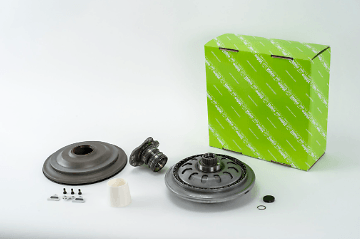

Step 1: Install the new support provided in the kit.

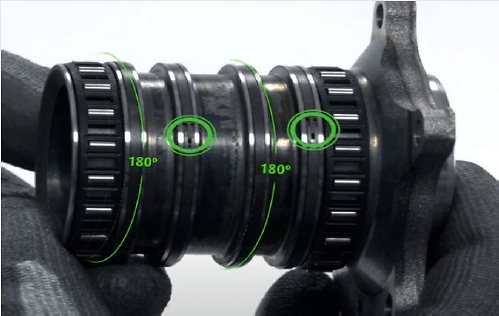

Step 2: Ensure the greasers are 180 away from each other.

Step 3: Place the new clutch support by using torque wrench with specific tightening torque included in fitting instructions.

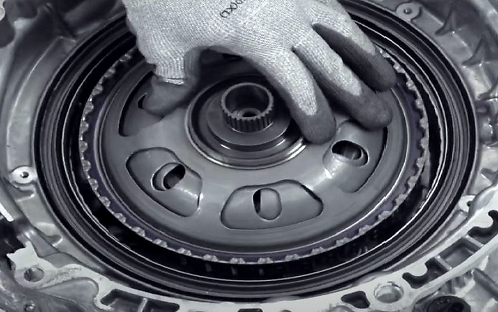

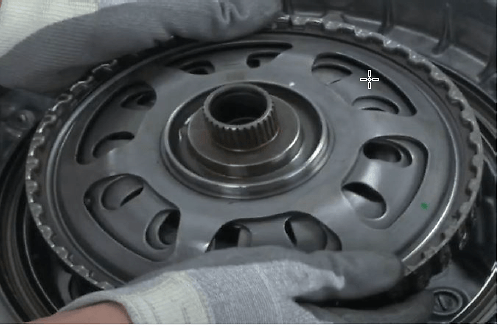

Step 4: Install the new kit as one unit

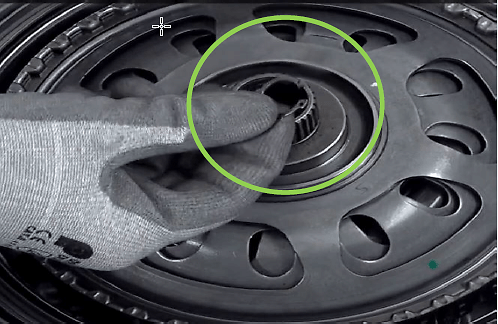

Step 5: Install the snap ring by using the pliers tool.

Step 6: install the rubber cap.

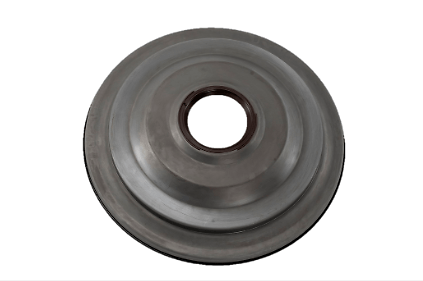

Step 7: Install the new cover.

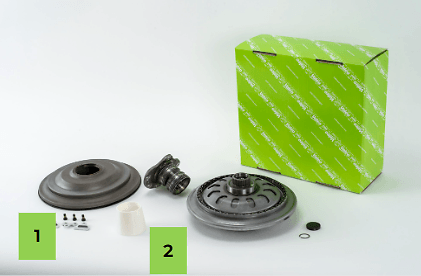

Step 8: Install the new cover using the bolts and the support [1] and using the specific tool [2] to locate the cover on the axle.

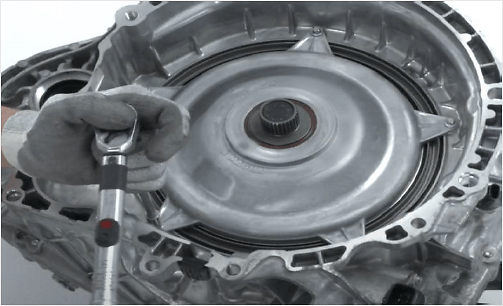

Step 9: Install the cover and apply the torque provided in the fitting instructions.

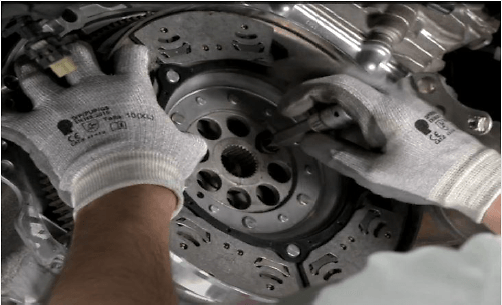

Step 10: Install the flywheel applying the correct torque provided in the fitting instructions.

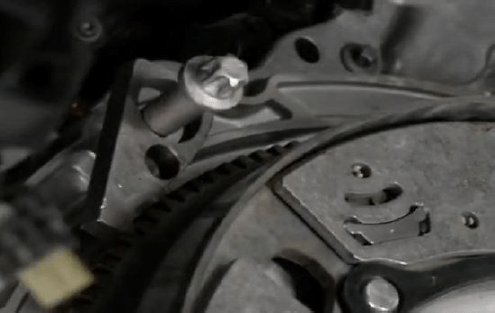

Step 11: Install flywheel blocking tool.

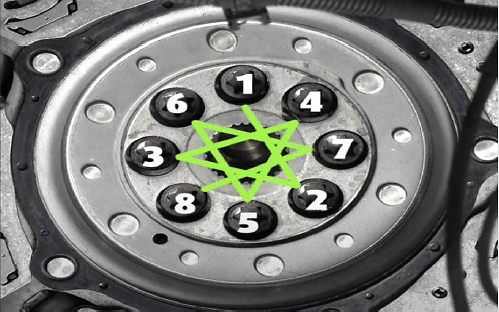

Step 12: Apply torque and tight the bolts in star sequence NEVER use impact tool.

Step 13: Do not forget to remove the flywheel blocking tool.

Step 14: Refill the gearbox with oil specified by car manufacturer.
